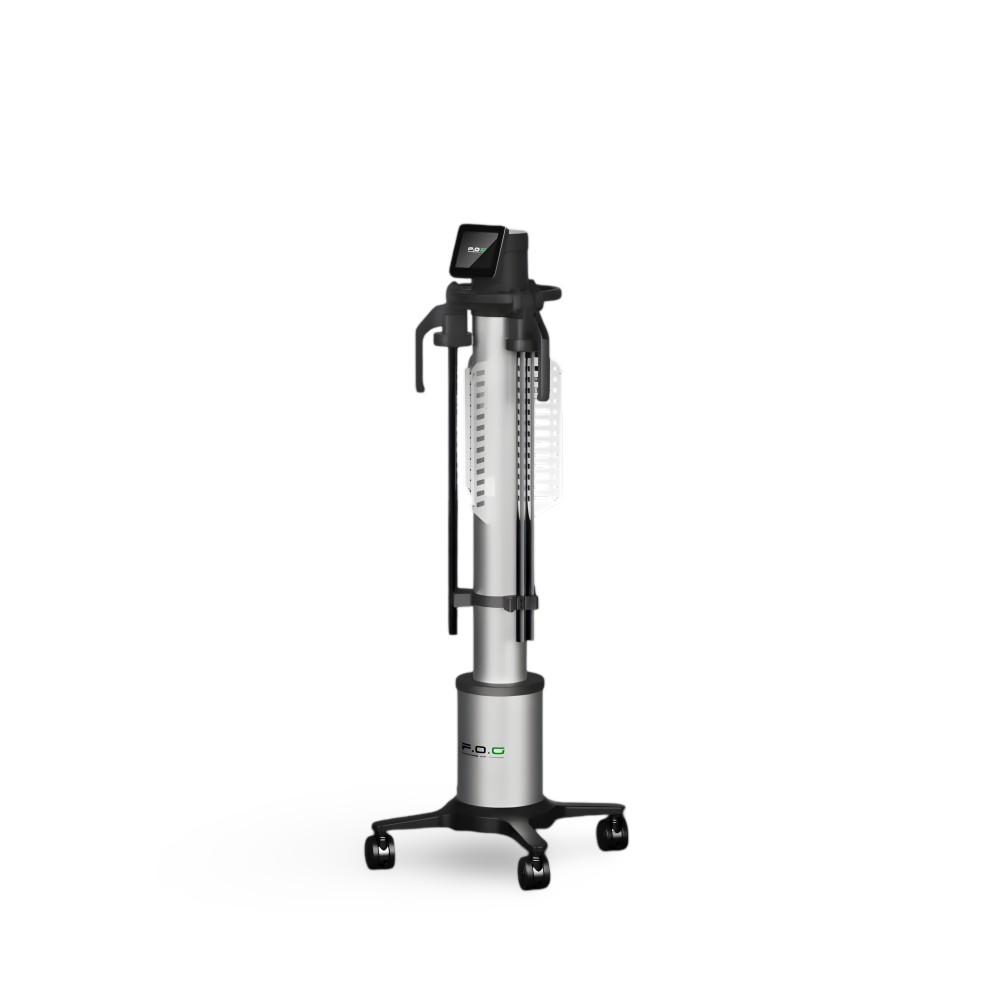

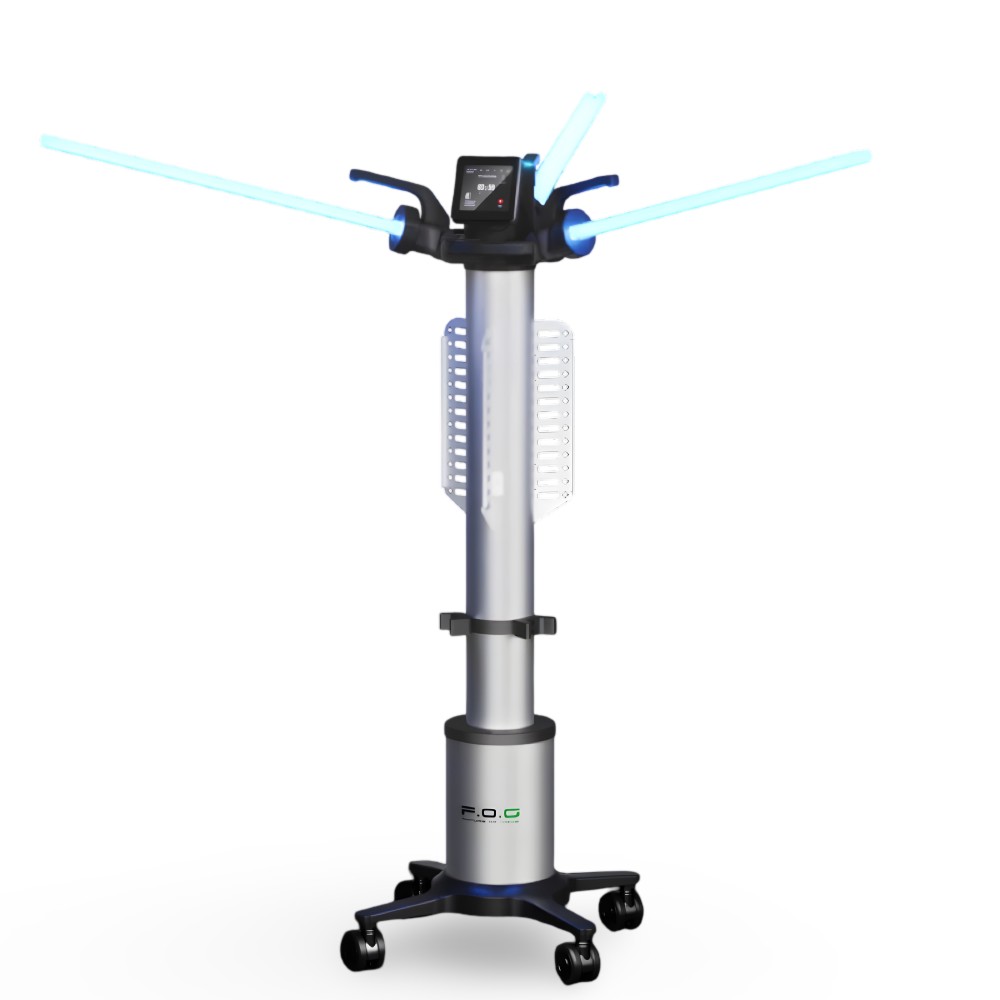

AXYS 360 PRO – Professional UV-C Sterilizer
The AXYS 360 PRO is a professional UV-C sterilizer designed for demanding environments. With its three high-power UV-C lamps arranged in an “H” configuration, it provides 360-degree irradiation coverage to minimize unexposed areas during the disinfection cycle.
Portable and designed for professional use, the AXYS 360 PRO combines UV-C technology, smart controls, a safety system with presence detection, and cycle tracking. It can be used to treat spaces up to 50 m³ according to the manufacturer’s specifications.

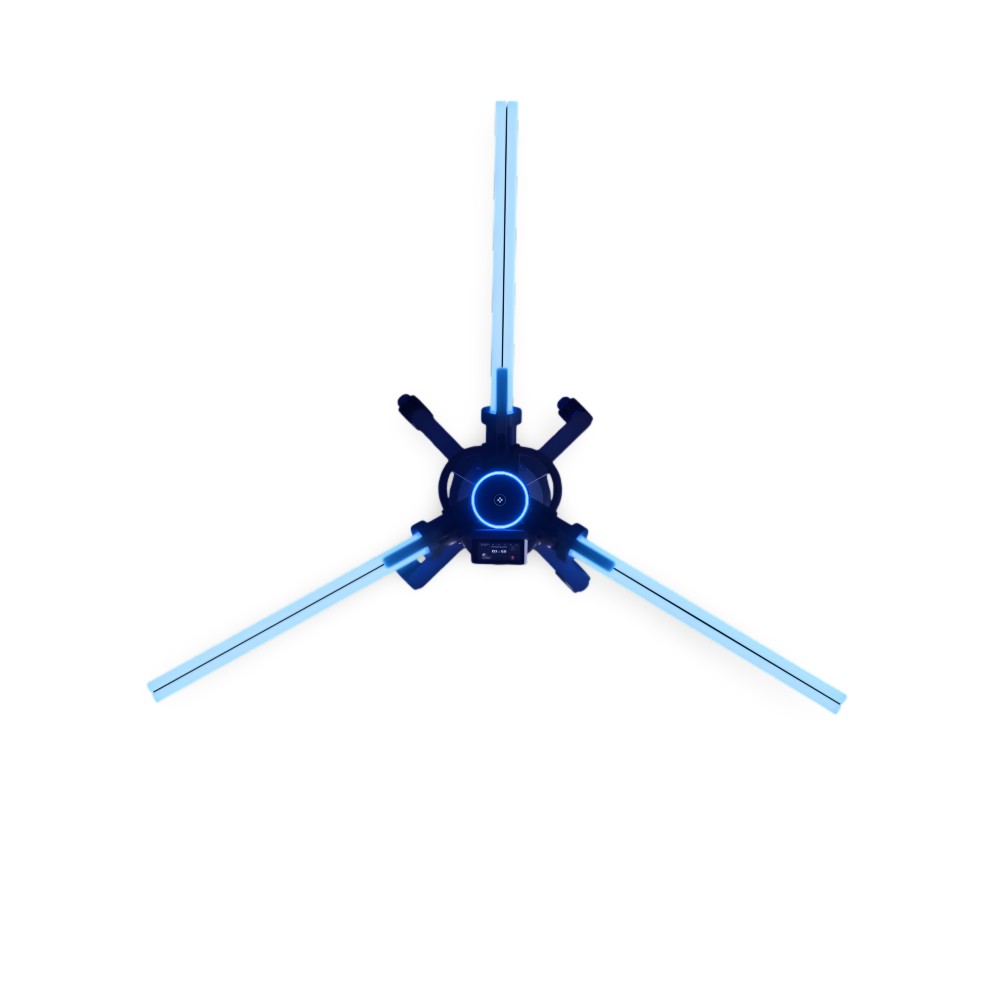

360-Degree UV-C Disinfection
The irradiation system uses three 55-W UV-C lamps with a wavelength of 254 nm. Their arrangement allows for wide diffusion of radiation around the unit. The manufacturer claims a lamp lifespan of up to 6,000 hours and an inactivation rate of up to 99.90% under specified test conditions.
- 3 × 55 W UV-C lamps
- 254 nm
- 6,000-hour rated lifespan
- 99.90% claimed inactivation rate
- Applicable surface area or volume up to 50 m³
Touchscreen interface and smart control
The AXYS 360 PRO features a touchscreen control system that allows the operator to manage operating parameters and monitor the device’s usage. Password-protected access also enables identification of the operator and the location of use.
- Password-protected startup
- Location and operator logging
- 30-second countdown before the lamps turn on
- Monitoring of UV lamp status
- Alert in case of a lamp failure
- Lamp replacement history
- Operating log exportable to a USB drive
Safety system with presence detection
To enhance safety during use, the AXYS 360 PRO features a radar-based presence detection sensor. When a person is detected nearby, the UV-C lamps automatically turn off to minimize the risk of accidental exposure to UV-C radiation.
The 30-second countdown before the lamps turn on also gives the operator time to leave the treated area.
Air Treatment Function
The AXYS 360 PRO features nanophotocatalytic reaction plates distributed around the tubes. When exposed to UV radiation, these plates trigger a reaction designed to help break down certain substances present in the air.
Portable and Practical Design
Thanks to its silent wheels, the AXYS 360 PRO can be easily moved from one space to another. A silicone mount helps protect the lamps from impact, while the cushioned base allows for one-handed adjustment of their angle.
- Quiet wheels
- Impact-resistant protective mount for the lamps
- Cushioned base
- One-handed lamp tilt adjustment
AXYS 360 PRO Technical Specifications
| Feature | Specification |
|---|---|
| Model | AXYS 360 PRO |
| Power Supply | 220 V / 50 Hz |
| Power Consumption | 180 W |
| Dimensions | 36 × 36 × 120 cm |
| Weight | 7.5 kg |
| Power cord | 2.5 m |
| UV lamps | 3 × 55 W UVC – 254 nm + 3 × 55 W UVC with ozone |
| Rated service life | 6,000 hours |
| Applicable volume | Up to 50 m³ |
| Staphylococcus albus elimination | > 99.9% |
| Removal of natural bacteria | > 90.0% |
| Device warranty | 2 years |
| UVC tube warranty | 1 year |
Precautions for Use
Warning: UV-C radiation can be dangerous to people and animals. The unit must not be operated in the presence of people, animals, or plants. UV-C radiation can also damage certain materials, including some plastics and silicones.
The AXYS 360 PRO comes with two types of tubes: ozone-free tubes and ozone-producing tubes. When using an ozone-generating tube, the room must be properly ventilated, and the air must be exhausted for at least 30 minutes before re-entering, in accordance with the manufacturer’s safety precautions.
The AXYS 360 PRO is thus a professional solution that combines 360-degree UV-C irradiation, digital control, cycle traceability, presence detection, and mobility for environments requiring controlled UV-C disinfection.
